Juddering, jerky shifts, a flashing gear light or limp mode. We diagnose DSG and Audi S tronic gearbox faults across the VW Group range: DQ200, DQ250, DQ380 and DQ381, DQ500, DL382 and DL501.
From servicing and diagnostics to clutch and mechatronic faults, we find the problem first and explain the repair before you spend money on parts.
Diagnose first
Then quote. Never the other way round.
Mechatronic testing, not guessing
Repair before replace where possible
Fixed price before work starts
The honest bit
A DSG is Volkswagen Group's dual-clutch automatic, badged S tronic on Audi. Two clutches pre-select the next gear so changes are almost instant. Brilliant when it is working, and it is a genuinely good gearbox, but it is a complex unit with a hydraulic-electronic brain called the mechatronic that needs the right care.
Here is the thing worth knowing before you read anything else about DSGs online. The fluid does not just lubricate; on a wet-clutch box it is the hydraulic medium that operates the clutches. As it degrades it carries debris through the mechatronic's valves and solenoids, and you get exactly the juddering and harsh shifting owners complain about.
Which means a large share of the four-figure DSG failures people dread started as a service that got skipped, and then as a symptom that got driven through for a year. Both of those were cheap to deal with at the time.
If your box is juddering today, today is the cheapest it will ever be to fix. That is the whole message of this page.
Symptoms decoded
None of these are a diagnosis on their own, and anyone quoting you a mechatronic over the phone is guessing. But they do tell you how urgent it is, and roughly where to look.
The classic one, and the one people describe as "like riding the clutch". On a wet-clutch box it usually points at tired fluid or clutch-pack wear; on the dry-clutch DQ200 it is more often the mechatronic struggling to control clutch pressure smoothly.
A pause before it engages, or a thump between gears. Often degraded fluid and worn clutch adaptation values, both of which are recoverable if you catch them. Left alone, the clutch packs take the punishment.
This is the gearbox telling you it has logged a fault and may protect itself. Do not ignore it and do not drive it hard. It is very commonly mechatronic-related and it is nearly always cheaper on the day it starts than a fortnight later.
The control unit has decided it cannot shift safely, so it locks things down to save the box. It is a protective measure rather than a death sentence, but it needs reading properly before anything is replaced.
Revs rise but the car does not pick up with them. That is a clutch not holding, and it is the symptom most likely to turn into a clutch pack if it is left. Get it looked at while it is still intermittent.
Mechanical noise needs a road test rather than a guess. It can be as simple as fluid level, or as involved as a bearing, and the only way to know which is to hear it and scan it.
Caught early, most of these are a service or a repair. Left too long, they become a clutch pack or a mechatronic unit.
Know your box
Not every DSG is the same. Volkswagen Group has used several generations of dual-clutch gearbox across Volkswagen, Audi, SEAT, CUPRA and Škoda, and the servicing requirements, common faults, clutch design and mechatronic systems vary between them. Which one you have changes the likely fault and the price, so it is the first thing we establish.
Common codes: 0AM / 0CW
Usually fitted to
Smaller-engined VW Group cars: versions of the Polo, Golf, Audi A1 and A3, SEAT Ibiza and Leon, Škoda Fabia and Octavia
What to watch for
The mechatronic unit is the known weak point. Juddering when pulling away, loss of drive, a flashing gear indicator and limp mode are the classic warning signs. Marketed as sealed for life, but it still benefits from fresh fluid.
Common codes: 02E / 0D9
Usually fitted to
One of the most widely used wet-clutch DSGs: Golf GTI, Passat, Audi A3 and TT, SEAT Leon, Škoda Octavia
What to watch for
The workhorse, and genuinely tough if it is serviced correctly. Skip the fluid and the clutch pack and the mechatronic hydraulics pay for it. We diagnose shifting problems, clutch wear, mechatronic faults and service-related issues.
Common codes: DQ381: 0GC
Usually fitted to
Newer VW Group models: versions of the Golf, Tiguan, Passat, Octavia, Superb and Leon
What to watch for
Smooth when healthy. Hesitation, rough or jerky changes, clutch slip, gearbox warnings and mechatronic faults are the symptoms we see, and fluid condition is usually the first thing to check.
Common codes: 0BH / 0BT
Usually fitted to
The high-torque DSG: Transporter and Caravelle, Golf R, and performance models such as some Audi RS3 and TT RS variants
What to watch for
A strong gearbox, but vans working for a living, cars towing and high-output engines put real heat through the fluid. Correct diagnosis and servicing matter more here, not less.
Common codes: 0CK / 0CL / 0CJ
Usually fitted to
Longitudinal dual-clutch S tronic in various Audi models: versions of the A4, A5, A6 and Q5
What to watch for
Loss of drive, poor gear engagement, gearbox warnings, clutch problems and mechatronic faults. A different unit from the transverse DQ boxes, so it needs diagnosing on its own terms.
Common codes: 0B5
Usually fitted to
Longitudinal Audi S tronic across a range of higher-output Audi applications
What to watch for
Jerky or erratic changes, loss of drive, an inability to select particular gears, limp mode, and mechatronic or clutch faults are the typical complaints.
Common codes: 0DD
Usually fitted to
Plug-in hybrid VW Group cars, including the Golf GTE and related models
What to watch for
Unlike a conventional DSG it carries hybrid-drive components inside the transmission assembly, so work on it needs the right high-voltage knowledge, equipment and procedures. Tell us the registration and what it is doing and we will confirm what we can take on.
Don't worry about finding the gearbox code yourself. Give us your registration and tell us what the car is doing. We can identify the transmission fitted and diagnose the fault before recommending a repair.
Prevention
Wet-clutch DSG and S tronic gearboxes rely on the correct fluid, the correct level and the correct service procedure to protect their clutches, bearings and hydraulic control systems. The fluid runs the clutches and the mechatronic as well as lubricating, so fresh fluid and a fresh filter is the single cheapest thing you can do for a DSG, and the thing most owners have never had done.
Service intervals vary with the exact gearbox and vehicle, so we identify the transmission from your registration before confirming what it needs. If you do not know when yours was last done, tell us the registration and we can advise.
A £195 service against a clutch pack or a mechatronic unit is not a close call.
The mechatronic unit is the DSG's control centre, a combined valve body and control module that manages clutch pressure and gear selection. It is the most common failure point, especially on the DQ200, and the usual reason for limp mode and a flashing gear light.
Plenty of mechatronic faults are repairable: sticking solenoids, pressure-control problems, sensor and wiring issues. Some genuinely need a replacement or reconditioned unit. The difference between the two is a four-figure conversation, which is exactly why we test rather than assume.
You get told which yours is, with the evidence, before anything is ordered.
DSG faults come from several places: the clutch system, the mechatronic unit, sensors, hydraulic pressure, electrical faults or mechanical components inside the transmission. That is why we diagnose before replacing parts.
Where a mechatronic unit can be repaired, we will explain that option. Where the fault lies elsewhere, we will tell you that too. The aim is to repair the fault, not simply replace the most expensive component.
We diagnose first and give you a fixed price before any work begins. No surprises, no pressure, and no phone call halfway through that changes the number.
12-month parts and labour warranty on the work we do.
From the workshop
Real jobs off our ramps, described by the mechanic who did them.

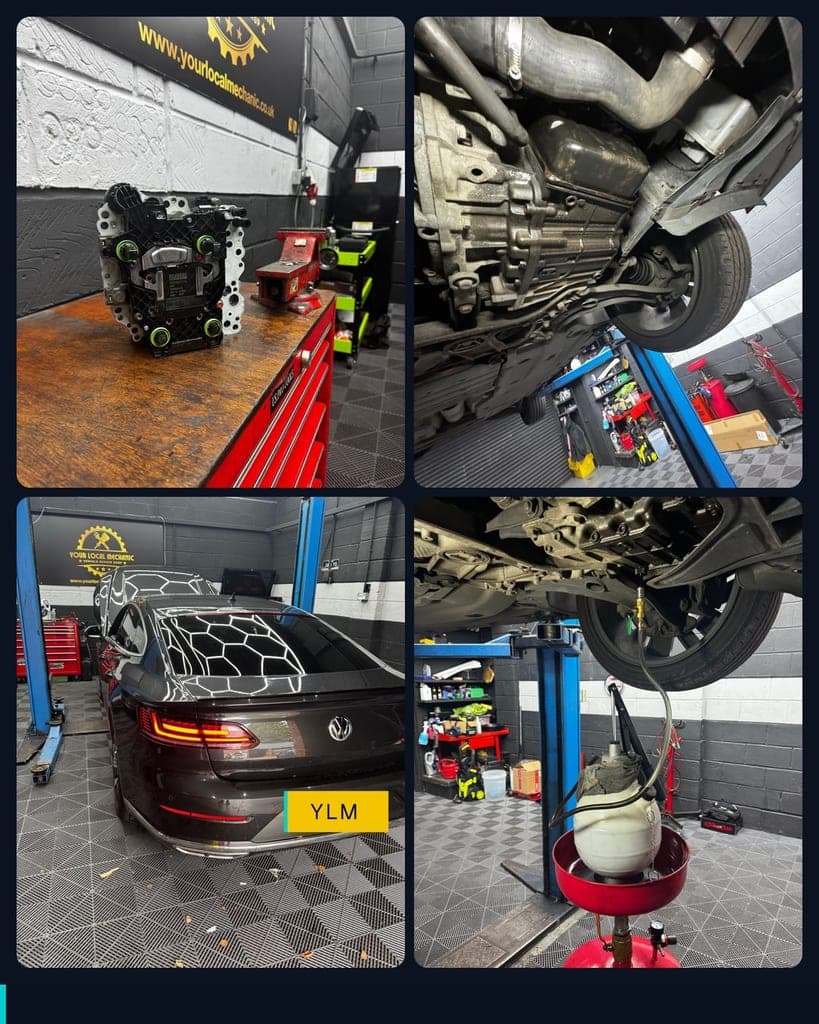

This 2018 Volkswagen Arteon 2.0 TDI came into the Dudley workshop with a complaint that is easy to get wrong. The owner had noticed the gearbox getting stuck in 2nd and 5th gear. A DSG holding a gear is exactly the sort of symptom that gets a whole new gearbox quoted over the phone.
Elliot put it on diagnostics first. The fault traced to the mechatronic unit, the electro-hydraulic control section of the gearbox that manages oil pressure to the clutches and gear actuators. The pressure solenoids inside the unit itself had failed, so the box could not route pressure where it needed to go and was left holding a gear.
Rather than replace the gearbox, the mechatronic unit was fully reconditioned and repaired, then refitted with fresh oil. Then the part that gets missed. On these boxes the car has to be warmed up properly so the gearbox oil level can be set at the correct temperature, and the basic adaptions have to be run so every gear is synchronised and working properly again. The owner collected the car shifting as it should.
Worth knowing: stuck in gear is a symptom, not a diagnosis. On this car it was a repairable fault inside the control unit, which is a very different bill from a replacement gearbox. That is why we test before anything is ordered.
Diagnostics and many DSG oil and filter services can be done at your home or work, as long as there is somewhere flat and safe to work. That is often enough to answer the question you actually have, which is how bad is it.
Mechatronic and clutch-pack work needs ramps, torque settings and a clean environment, so we collect the car for those and complete it at Unit 6, Turner Street, Dudley, then bring it back.
Call and describe what it is doing. We will tell you which of the two yours is before you commit to anything.
Mechatronic and clutch-pack problems are exactly the kind of expensive fault that hides on a ten-minute test drive. A stored fault code and a set of worn clutch adaptation values will tell you far more than the seller will.
Ask for the gearbox's service history specifically, not just the engine's. On a wet-clutch box, no DSG fluid record is a real bargaining point and a real risk.
Pre-purchase inspection with a full diagnostic scanBeyond DSG
It is not only DSGs. We handle conventional gearbox problems too: whining or crunching manuals, gears that will not select, and automatics that slip or hold gears too long. That covers diagnosis, gearbox oil changes, clutch replacement and full gearbox replacement where a unit is beyond economic repair.
One honest caveat: internal rebuilds that need a transmission specialist's bench are the one job we will refer on, and we will tell you that at diagnosis rather than after a bill.
In their words
I had an awful grinding noise start on my Vauxhall Antara but could not identify exactly where it was coming from. I took the car to several garages and a transmission specialist but none of them could give me an answer. I looked on line and called your local mechanic and spoke to Elliot in Stourbridge. He told me to take the car over and he would take a look. We went out for a test drive and Elliot identified the problem almost immediately. Elliot called me later the same day with prices for replacement parts fitted,both new and used. I agreed to have new parts and Elliot took the car in immediately. He kept me informed of progress as a big transmission job and completed the work in time for my holiday. Car is now like new. This mechanic is very professional,friendly and extremely knowledgeable and competitive. Top marks and many thanks Elliot,you will be highly recommended 👍👍👍
Mick McCann
Stourbridge
My audi tt broke down on the m6 mon evening got it recovered to my home address searched for a decent mobile mechanic on line and found elliot's number rang to book app he came the nxt day diagnosed the fault with in minutes he said he would order the parts and return the following day at 10am arrived smack on time sorted out my car the price was very reasonable would definitely use him again and recommend him to anyone thanks again elliot
Carol
Verified customer
Brilliant service from Elliot at YourLocalMechanic. He is a genuinely trustworthy, friendly and reliable man. He came to my house, ran diagnostics and quickly identified and fixed the issue, making the whole process completely hassle-free. The pricing was fair and reasonable, and the service was excellent from start to finish. I would definitely recommend Elliot to anyone looking for an honest and reliable mechanic.
A Smith
Verified customer
We'll always tell you honestly if another transmission specialist is the better option.
We diagnose at your place and collect for workshop jobs.
Workshop: Unit 6, Turner Street, Dudley, DY1 1TX. Open seven days, 7am to 5pm.
55+ years between them. 12-month parts warranty. £5m public liability cover.
Every job is carried out by Elliot or Keith - the mechanic who quotes your job is the one who works on your car. No call centres, no subcontractors.
Lead Mechanic & Founder
Founder of Your Local Mechanic. City & Guilds Level 3 qualified with 15+ years experience, specialising in modern diagnostics and hybrid vehicles across the Black Country.
Senior Mechanic & MOT Assessor
Senior mechanic at Your Local Mechanic with 40+ years Vauxhall main dealer experience and a fully qualified MOT assessor, known for honest, careful work across the Black Country.
Before you call
It depends on the exact gearbox and the manufacturer schedule for your car, so there is no single interval that applies to every DSG. Many wet-clutch boxes such as the DQ250, DQ381 and DQ500 are scheduled for an oil and filter service around every 40,000 miles, and even the dry-clutch DQ200, which is sold as sealed for life, benefits from fresh fluid. If the car tows, sits in traffic or works for a living, sooner is better. Tell us the registration and we will confirm which box you have and what it actually needs.
DSG and S tronic are Volkswagen Group names for related dual-clutch transmission technology. Audi generally uses the S tronic name, while Volkswagen, SEAT, CUPRA and Škoda commonly use DSG. The exact gearbox underneath can still be very different. Some Audi models use the longitudinal DL382 or DL501 S tronic gearboxes rather than the transverse DQ-series DSG units found in most VW Group cars, and that changes the likely fault and the repair.
It depends on the exact model, engine, year and drivetrain. The common DSG and S tronic families are DQ200, DQ250, DQ381, DQ500, DL382 and DL501, and each also has a technical identifier such as 0AM, 0CW, 02E, 0D9, 0GC, 0BH, 0BT or 0B5. You do not need to know any of this before calling us. Give us the registration and we will identify the transmission fitted.
A flashing gear or PRND light means the transmission control unit has logged a fault and may drop the car into limp mode to protect itself. It is most commonly mechatronic-related, sometimes clutch-related. Avoid driving it hard, and get it scanned rather than waiting to see if it clears, because the fault codes stored at the moment it happened are the most useful evidence there is.
How a full diagnostic scan worksIt is the earliest useful warning you get, and it is worth acting on. Juddering as you set off usually points to clutch-pack wear or the mechatronic struggling to control clutch pressure. Caught early it is often a fluid service and an adaptation reset. Left for months it turns into a clutch pack, which is a very different bill.
Plenty of mechatronic faults can be repaired rather than replaced: sticking solenoids, pressure-control problems, sensor and wiring faults. Some genuinely need a replacement or reconditioned unit. We test first and only fit what the evidence says is needed, then explain both options and the cost before any work starts.
Often, yes. A DSG fault can come from the mechatronic unit, the clutch pack, sensors, the hydraulic system, a missed service or an individual mechanical component. That is why diagnosis matters: replacing a complete gearbox before the actual failure has been identified is an expensive way to guess. We find the fault first and explain the repair options that are genuinely on the table.
It depends entirely on the fault, which is why we diagnose first from £45 and quote a fixed price before anything starts. An oil and filter service is from £195. Mechatronic repairs and clutch packs vary by model and are quoted after diagnosis. Caught early, most DSG problems cost a fraction of the replacement gearbox people fear when they first search for this.
A serviced DSG is a good gearbox. Most of the horror stories trace back to fluid that was never changed, or early warning signs that were driven through for a year. If you are buying used, the question to ask is not whether it is a DSG but whether it has service history for the gearbox specifically, not just the engine. A pre-purchase inspection with a transmission scan and a road test answers it properly.
Pre-purchase inspection with a transmission scanNo. We use the correct DSG oils and filters and dealer-level diagnostics at a fraction of main-dealer prices, and back the work with a 12-month parts and labour warranty. Servicing to the manufacturer schedule with correct-specification parts keeps a manufacturer warranty intact wherever the work is done.
VW Group DSG and S tronic gearboxes across Volkswagen, Audi, SEAT, CUPRA and Škoda, from the transverse DQ200, DQ250, DQ381 and DQ500 to the longitudinal Audi DL382 and DL501, plus many Ford Powershift dual-clutch boxes. From a Polo to a Transporter. Keith spent forty years as a main-dealer technician and Elliot specialises in modern diagnostics, so the electronics side is not guesswork.
Diagnostics and many DSG oil and filter services can be done at your home or workplace, as long as there is somewhere flat and safe to work. Mechatronic and clutch-pack work needs the ramps and the clean environment of the workshop, so we collect the car for those and bring it back when it is done.
How the mobile side worksYes. Alongside DSG and S tronic work we handle conventional gearbox problems across the Black Country: whining or crunching manuals, gears that will not select, automatics that slip or hold gears too long, gearbox oil changes, clutch replacement and full gearbox replacement where a unit is beyond economic repair. Internal rebuilds that need a transmission specialist bench are the one job we refer on, and we say so at diagnosis.
Tell Elliot or Keith what the car is doing and which model it is. You'll get a straight answer on what it probably needs, what it will cost to find out for certain, and whether it is safe to keep driving.
